2mm 3mm Sandwich Aluminum Alloy Sheets 5052 6063 6061 7075

Ask Lasest Price
Brand Name :	BF
Model Number :	7075, 7475, 7050, 7B50, 7A55,
Certification :	RoHS, ISO9001, ASTM, JIS, GB, EN, ASTMB, SGS
Price :	$2850-$3350/ton
Supply Ability :	3000ton/month
Delivery Time :	7-12 Days After Order Placed.

Add to Cart

Product Details
Company Profile

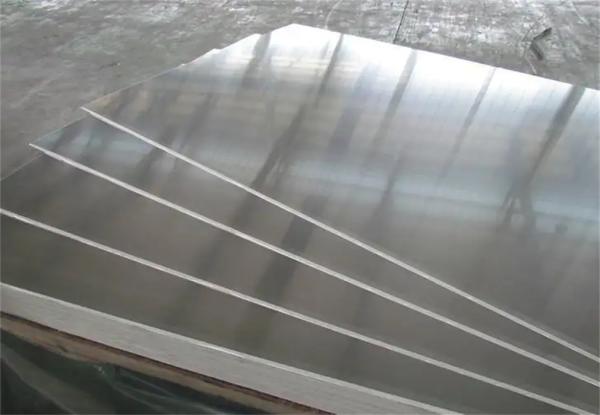

2mm 3mm Sandwich Aluminum Alloy Sheets 5052 6063 6061 7075

2mm 3mm thick 5052 6063 6061 7075 sandwich aluminum sheets

1000 Series has minimum of 99% aluminum with no major alloying additions. These compositions are characterized by excellent corrosion resistance, high thermal and electrical conductivity, low mechanical properties and excellent workability. These alloys are non-heat treatable. The most common type is 1100 which is commercially pure aluminum. It is soft and very ductile, having excellent workability. Well suited for applications involving severe forming as it work hardens more slowly during forming. It is the most weldable of all aluminum alloys.

1050 | ALUMINUM 99.50 min | ADDITIONAL ELEMENTS

0.25 Si max, 0.40 Fe max, 0.050 Cu max, 0.050 Mn max, 0.05 Mg max, 0.05 V max, 0.03 max other (each)

Mechanical properties:

Tensile strength:60-100 MPa,Extensibility:23%

Application:Lighting fixtures,reflector plate,decorations,chemical industry vessel,radiating rib,nameplate,electronic parts,lamps and lanterns,electrical appliance,stamping parts etc.

1.product description

Type	Aluminium sheet/plate
Standard	GB/T3190-2008,GB/T3880-2006,ASTM B209,JIS H4000-2006,etc
Grades	a) 1000 Series: 1050,1060,1070, 1100, 1200, 1235, etc.
	b) 2000 Series: 2A12, 2014, 2024 etc.
	c) 3000 Series: 3003, 3004, 3005, 3104, 3105, 3A21, etc.
	d) 4000 Series: 4045, 4047, 4343, etc.
	e) 5000 Series: 5005, 5052, 5083, 5086, 5154, 5182, 5251, 5454, 5754, 5A06, etc.
	f) 6000 Series: 6061, 6063, 6082, 6A02, etc.
	g) 7000 Series: 7075, etc.
Temper	O, H12, H14, H16, H18, H22, H24, H26, H28, H32, F, H112, T651, T3, T451, T4, T6, etc
Common Thickness	0.1mm - 260mm,as Your Request
Common Width	1000mm, 1200mm, 1250mm, 1500mm, 2000mm or any cut to size
Common Length	1000mm, 2000mm, 2500mm, 3000mm, 6000mm or any cut to size
Surface	Mill finished, Coated, Embossed,Brushed, Polished, Mirror, Anodized,etc.
OEM Service	Perforated, Cutting special size, Doing flatness, Surface treatment,etc.
Quality	Certificate of Test, JB/T9001C, IS09001, SGS, TVE
Protection	Plastic film covering
Delivery	In general, within 7-15 working days after receiving deposit or According to Final order quantity
Usage	Construction filed, Ships building industry, Decoration, Industry,Manufacture,Machinery and hardware fields, etc.

2.chemical composition

alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Zr	Ti	standard
7075	0.4	0.5	1.2-2.0	0.3	2.1-2.9	0.18-0.28/	5.1-6.1	0.05	0.2	AMS
7475	0.1	0.12	1.2-1.9	0.06	1.9-2.6	0.18-0.25	5.2-6.2	0.05	0.06
7050	0.12	0.15	2.0-2.6	0.1	1.9-2.6	0.04	5.7-6.7	0.08-0.15	0.06
7B50	0.12	0.15	1.8-206	0.1	2.0-2.8	0.04	6.0-7.0	0.08-0.16	0.10-0.25
7A55	0.1	0.1	1.8-2.5	0.05	1.8-2.8	0.04	7.5-8.5	0.08-0.20	0.10-0.25

3.company information

we takes pride in the satisfied and loyal customer base, garnered through a commitment to excellence. The vision and unparalleled support from the Board of Directors along with the commitment and expertise of the employees has helped ZhuXia attain the heights of success in a very short period of time.
Hope our endeavours impress you as much it has our existing customers.
